Lab-Quality Results with a fast, easy workflow
QubeMDx+™ is a rapid and accurate molecular diagnostic platform that empowers veterinarians to deliver timely, informed care. With fast sample preparation and real-time PCR, it provides lab-quality results for multiple pathogens in just 20 minutes.

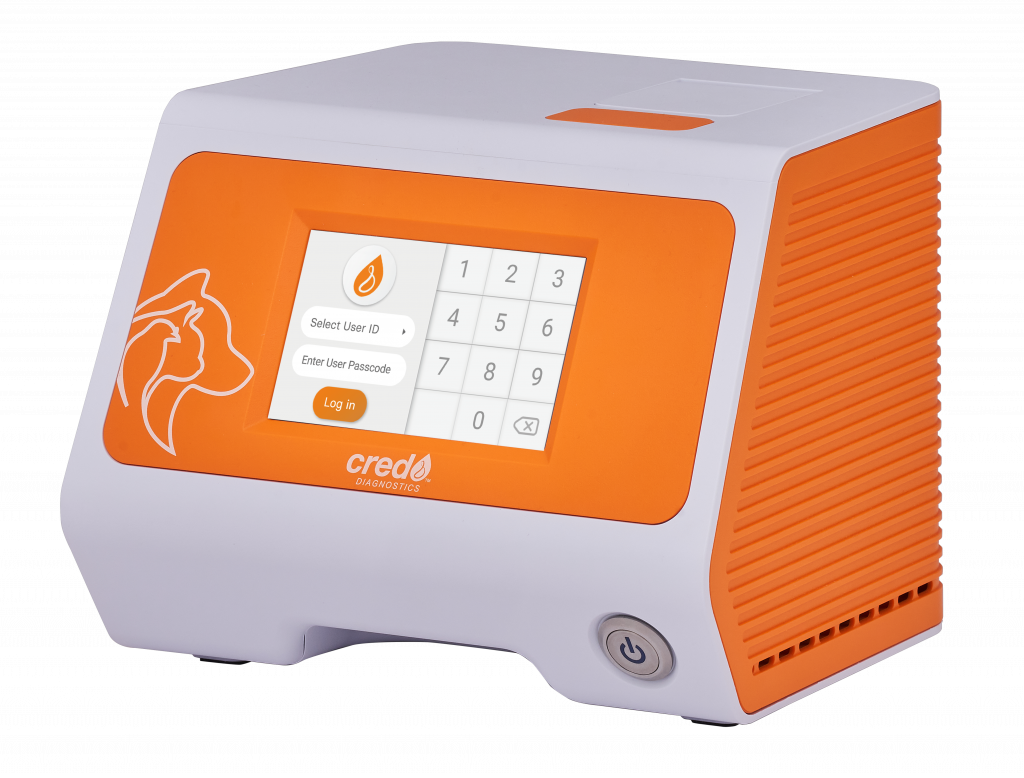

QubeMDx+™
PRODUCT FLYER
For more information, click the button below to download the brochure.
REGISTRATION STATUS
For Veterinary Use Only
Advantages
Easy to Use
Minimal training required
Intuitive result interpretation
Results with Ct value & fluorescence curve
Rapid
Sample to result within 20 mins
1 min hands-on time for preparation
Import patient ID via built-in scanner
Versatile
Can be deployed anywhere
No additional equipment needed
Transportation and storage of reagents at room temperature

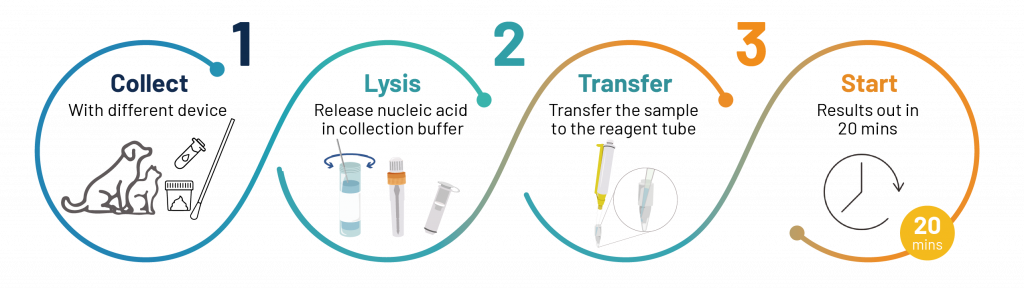

Diagnostic Procedure in 4 Steps
Collect
Collect sample
Lyse
Lyse the sample
thoroughly for 15 times
Transfer
Transfer the sample
Start Run
Results reported in
20 minutes
Collect
Collect sample
Lyse
Lyse the sample
thoroughly for 15 times
Transfer
Transfer the sample
Start Run
Results reported in
20 minutes
Decentralized PCR Testing by Professionals
Emergency Rooms
Nursing Homes
Laboratories
Airports
Factories
Limited Heathcare Resources
QubeMDx+™ Assays
Feline
• QubeMDx+™ Feline Respiratory Viral Assay (FHV/FCV)
• QubeMDx+™ Feline Respiratory Bacterial Assay (M.felis/C.felis/Bbronc)
• QubeMDx+™ Feline GI Assay
(FPV/FCoV/Giardia)
• QubeMDx+™ Feline GI Assay
(FPV/FCoV)
• QubeMDx+™ Feline Blood Infection Assay (FIV/FELV)
Canine
• QubeMDx+™ Canine Respiratory Viral Assay (CDV/CAV1&2/CPIV)
• QubeMDx+™ Canine GI Assay (CPV/CCV/Giardia)
• QubeMDx+™ Canine GI Assay (CPV/CCV)
• QubeMDx+™ Canine Blood Infection Assay (CHW/Ecanis/Aphag&Aplat)
• QubeMDx+™ Canine Blood Infection Assay(Babesia/Bburg)
VitaPCR™ Instrument
Product Code
PCRAC0101
Dimensions
15.5 x 16.5 x 20.5 cm (H x W x D)
Weight
1.2 kg
Power Supply
12V, 5A
Color Touch Screen
4” capacitive touch LCD display
Fluorescence Detection
450 to 750 nm
Fluorescence Channel
3+1 (Internal Control)
Storage Environment
15-40℃
Operating Environment
10-38℃, 10-80%RH
Power Adaptor
INPUT: AC 100-240V~2.0A
Max, 50-60Hz
OUTPUT: DC 12V-5A
Registration Status
CE-marked (IVDR)
